PRODUCT DISPLAY

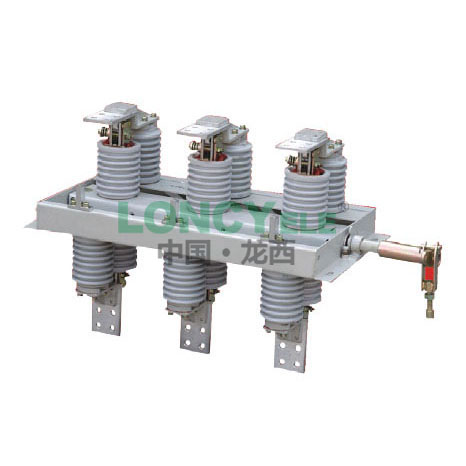

GN30-12(D) Rotary Indoor HV Disconnect Switch

Summary

GN30-12(D) disconnect switch is an indoor electric apparatus with rated voltage 12kV, three-phase AC50/60Hz. It is used to make break and transfer current for HV electric apparatus under situations with voltage and no-load.The switch applies rotary moving contact which is mounted on the switchgear easily. It adopts wall installation as well.

Ambient condition

1. Altitude: ≤ 1000m;
2. Ambient temperature: -25℃ ~+40℃ ;
3. Relative humidity: daily average ≤ 95% , monthly average ≤ 90% ;
4. Earthquake intensity: ≤ 8 grade;
5. Applicable occasions should free from inflammables, explosives, corrosives and severe vibration.

Product feature

1. Scientific design and innovative structure.
2. Contacting points distribute on two planes, small operating moment, and release pressure to small and easy adjustment.
3. Improved driving and conducting part.
4. Column moving contact that can decrease operating strength and ensure reliability of circuit conduction.

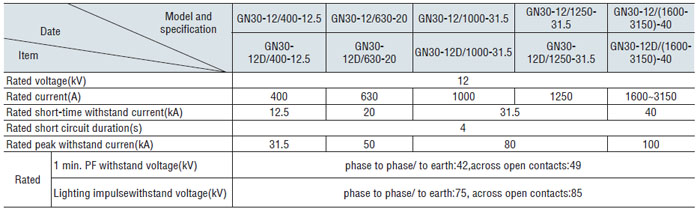

Technical specification

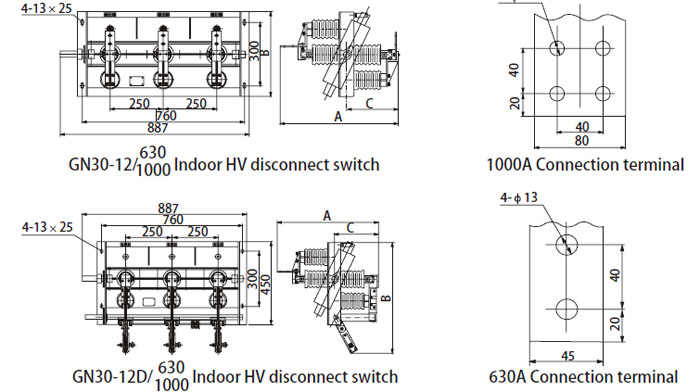

Outline dimension
